AUTOMATIC VIAL LIQUID FILLING & STOPPERING MACHINE
AUTOMATIC VIAL LIQUID FILLING & STOPPERING MACHINE

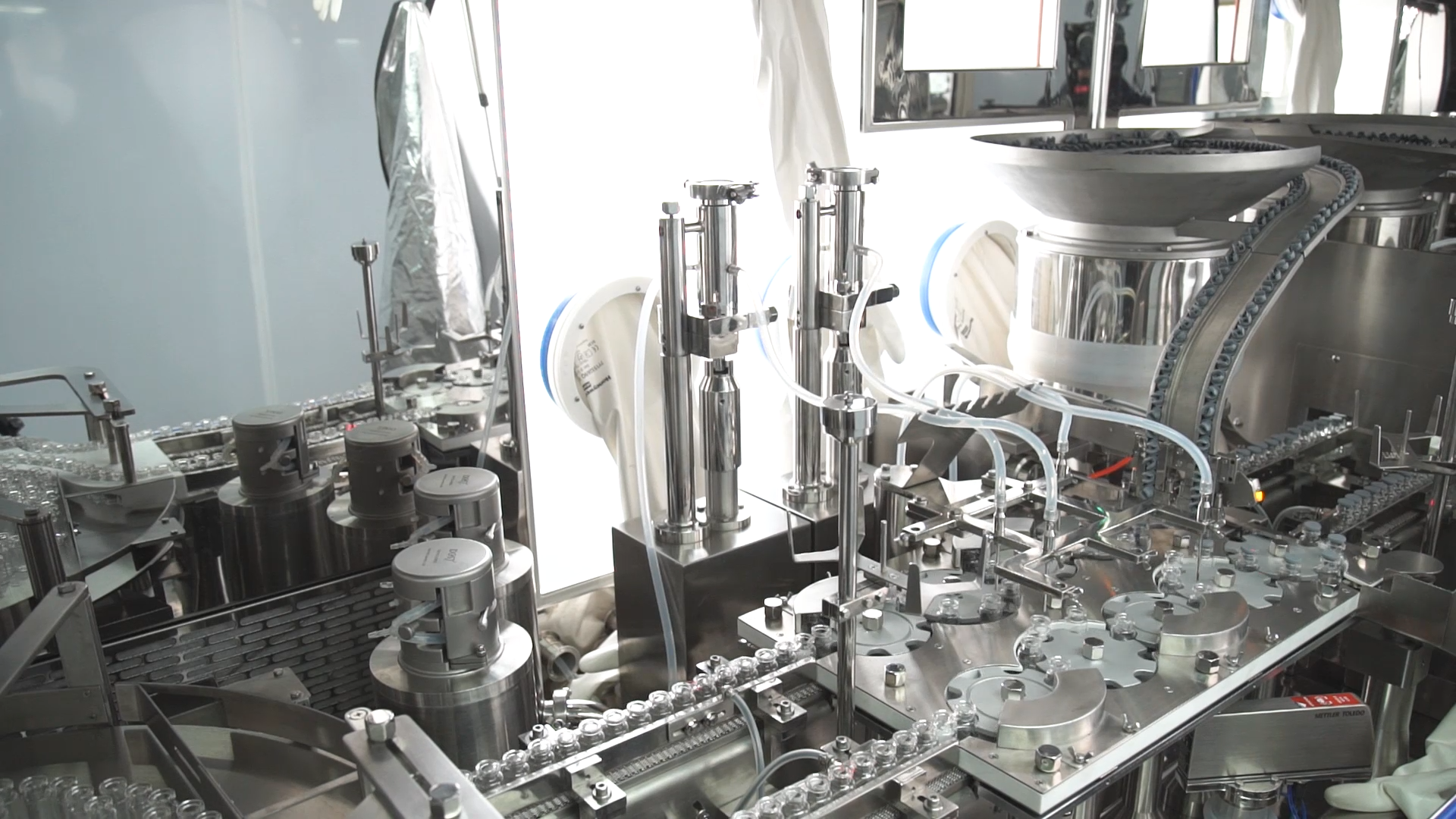

Since 1964's, Shun Yi Machinery & Engineering Co., Ltd. has been recognized throughout the pharmaceutical industry for leadership in the design and manufacture of high performance injectable machineries. The Model VF(S)-20/100 Automatic Vial Filling & Stoppering Machine is the latest model designed to meet the industry demands for filling injectable liquid into glass vials. In compliance with the latest PIC/S GMP regulations, an individual Automatic Vial Capper Model CP-100 can be coupled to complete the continuous line operation.
|

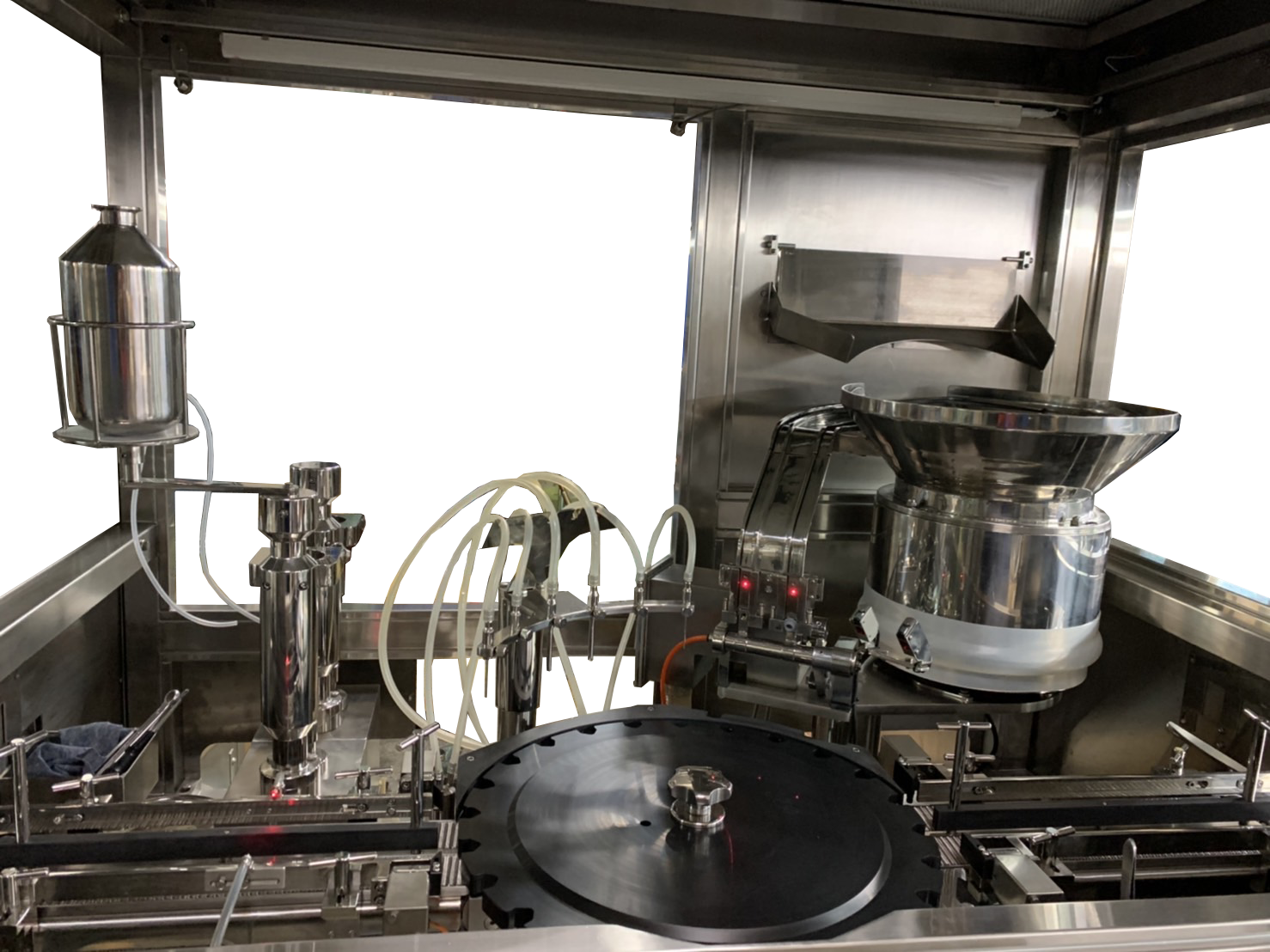

MAIN PARTS: |
|
1. Intake conveying section |
|
2. Intermittent starwheel transport section |
|
3. Liquid filling & N2 filling section |
|
4. Rubber stopper feeding section |
|
5. Vial release and discharge section |
|
Model |
VF-20 |
VFS-20 |
VF-100 |
VFS-100 |
|
Vial size |
15~35mm diameter |
30~53mm diameter |
||
|
35~75mm height |
58~95mm height |
|||
|
6.5mm minimum mouth |
12mm minimum mouth |
|||
|
diameter |
diameter |
|||
|
Stopper size |
13mm or 20mm standard |
20mm standard |
||
|
Filling range |
0.5~20ml |
20~100ml |
||
|
Filling Accuracy |
±0.5% (10ml.) |
±0.5% (20ml.) |
||
|
Model |
Transmission |
Capacity (vials/min) |
||||
|
0.5~20 ml. |
20 ml. |
50 ml. |
100 ml. |
250 ml. |
||
|
VF-20 |
Piston |
30 ~ 50 |
N/A |
N/A |
N/A |
|
|
VF-100 |
N/A |
30~45 |
25~35 |
16~26 |
N/A |
|
|
VFS-20 |
60 ~ 100 |
N/A |
N/A |
N/A |
||
|
VFS-100 |
N/A |
60~90 |
50~70 |
32~52 |
N/A |
|
|
*VFS-20 |
Peristaltic |
N/A |
N/A |
1head:20 |
1head:12 |
1head:6 |
|
2heads:40 |
2heads:24 |
2heads:12 |
||||
|
3heads:60 |
3heads:36 |
3heads:18 |
||||
*VFS-20 is capable of filling 250 ml.
|
Electricals |
Main drive: 1/4HP,50/60HZ,110/220V,1 Phase; |
|
Intake conveyer: 40W,50/60HZ,110/220V,1 Phase; |
|
|
Discharge conveyer:40W,50/60HZ,110/220V,1 Phase; |
|
|
Turn-table:40W,50/60HZ,110/220V,1 Phase; |
|
|
Dimensions |
Machine:L205.5 x W171 x H214 (cm) |
|
PS.The actual size is based on the shipment. |
